Gutter Size Formula: The SMACNA and NIST Method

Most gutter sizing charts are lookup tables — roof under 2,200 sq ft, fit a 5-inch gutter. The method SMACNA publishes in its Architectural Sheet Metal Manual is a pair of formulas determined experimentally by the National Bureau of Standards, now NIST, and this gutter size calculator runs those instead. They give the width a level gutter needs:

Two things fall straight out of the algebra. The exponent on I × A is well under 1, so doubling your roof area does not double the gutter width — on a half-round it multiplies it by 2^2/5, about 32%. And width is far more sensitive to rainfall rate than to roof size, which is why the rainfall figure you type matters more than getting the roof measurement perfect.

The calculator also reports the peak flow the gutter carries, because that is the number a downspout is chosen against. One square foot of roof under 1 in/hr of rain sheds 0.0104 gallons per minute, so peak flow (gpm) = design area × rainfall rate × 0.0104. A 4,000 sq ft plane at 4 in/hr is moving 166.4 gpm through its gutters at the design storm.

How to Use the Gutter Size Calculator

Five inputs, and only the first three are on screen by default. Work left to right and read the result panel as you go.

1. Measure the roof footprint this one gutter drains

   Stand back and measure the building on the ground, not up the slope. Enter the length along the eave, then how far the roof reaches back from that eave. On a simple gable, that second number is half the building’s width, because the other half drains to the gutter on the far side.

2. Pick the roof pitch

   Choose the band your roof falls in — flat to 3/12, 4/12, 5–6/12, 8/12 or 12/12. This adds between 0% and 30% to the area, and it is an allowance for wind blowing rain onto the roof face, not a surface-area correction.

3. Enter your rainfall intensity in inches per hour

   Type your local design rate. If you do not know it, the dropdown next to the field fills in a rough regional figure so the calculator has something to work with — but look up your real number before you order material.

4. Choose K-style or half-round

   K-style is the ogee profile on almost every American house. Half-round is the semicircular one, common on older and higher-end work. They use different formulas and different stock sizes, so the answer changes.

5. Open “Gutter slope and downspouts” if you know them

   Set how many downspouts serve this run and what slope the gutter will be hung at. Both make the required width smaller. Leave them alone and you get two downspouts on a level gutter, which is the conservative default.

Worked Examples: Gutter and Downspout Sizing

The verification case. SMACNA’s manual works one example in full: a Buffalo, New York roof where a single gutter section drains 1,200 sq ft at a rainfall intensity of 10.4 in/hr, half-round, hung level. Its printed answer is a 9.5-inch half-round gutter. Enter a 40 ft eave, 30 ft of depth, flat pitch, 10.4 in/hr, half-round and one downspout and the calculator returns 9.50 in of required width, rounding up to a 10-inch stock half-round, with a peak flow of 129.8 gpm. That is the same number the manual prints, from the same formula.

An ordinary house. A 40 ft eave with 15 ft of roof depth on a 5–6/12 pitch, 4 in/hr of rain, K-style, level, two downspouts. The 600 sq ft footprint becomes a 660 sq ft design area, the peak flow is 27.5 gpm, and the required width is 2.69 in — so a standard 5-inch K-style gutter runs at about 18% of its capacity. The gutter is not the constraint on a house this size, and that is worth knowing before anyone sells you 6-inch.

What the calculator flags on that same house is the downspout. Flow-wise a 2×3 rectangular downspout is fine, but its cross section is 6.0 sq in and SMACNA advises against anything under 7 sq in outside porches and canopies. The warning tells you to step up to 3×4 even though the flow does not demand it, because the limit there is blockage, not hydraulics.

Where slope changes the answer. Take a large plane: an 80 ft eave, 50 ft of depth, flat pitch, 4 in/hr, K-style, two downspouts. That is 4,000 sq ft and 166.4 gpm. Hung level, it needs 5.51 in and lands on a 6-inch gutter. Hung at a quarter inch per foot, the same roof needs 4.31 in and a 5-inch gutter carries it. The comparison strip in the result panel shows all four slopes at once:

One input that no consumer gutter calculator asks for moves the answer a whole stock size, on a roof where 4,000 sq ft is otherwise unremarkable.

Rainfall Intensity: The Input That Decides Your Gutter Size

Roof area varies between houses by a factor of two or three. Design rainfall intensity across the United States varies by more, and it enters the formula with the same exponent that area does — so it carries the same weight. Texas alone spans roughly 2 to 4 in/hr on the 100-year, one-hour rate. A tool that assumes a national average is guessing at the single most important input.

The International Plumbing Code sizes storm drainage on the 100-year, one-hour rainfall rate for the location. Look yours up on NOAA’s Precipitation Frequency Data Server, which returns the figure for your exact coordinates rather than for your state. Enter that number in inches per hour. The regional dropdown in the calculator exists so the tool has a sane starting value, not as a substitute for the lookup.

Roof Pitch Factor vs. Sloped Surface Area

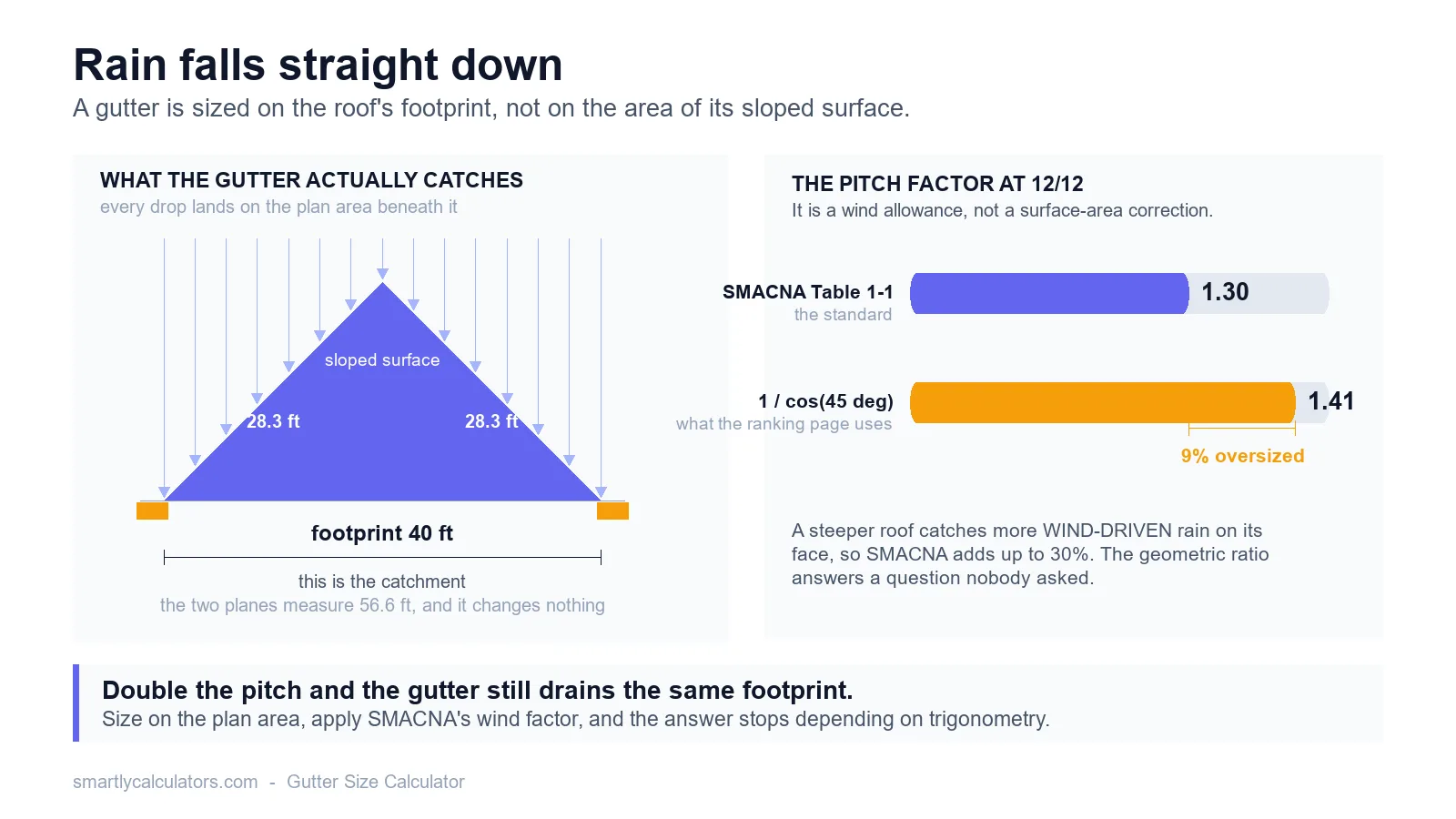

Rain falls vertically. A steep roof and a flat roof standing on the same footprint intercept the same falling water, because the catchment is the horizontal projection — the shadow the roof casts at noon. The sloped surface of a 12/12 roof is 41% larger than its footprint, and that 41% collects nothing extra.

So why does pitch appear in the calculation at all? Because wind blows rain sideways onto the roof face, and a steeper face presents more of itself to a driving rain. SMACNA’s Table 1-1 handles that with a multiplier on the plan area, and it tops out well short of the geometric ratio:

The two agree in the middle and separate at the top. Gutter calculators that apply 1/cos θ and describe it as “increased surface area” oversize a 12/12 roof by about 9% for a reason that is not physically there. SMACNA’s other worked example runs the factor the correct way: a plan area of 8,500 sq ft on a 5–6/12 roof becomes a design area of 9,350 sq ft, which is exactly what this calculator reports for that input.

If your roof pitch is written as a percentage grade or in degrees rather than in twelfths, convert it first with the Slope Percentage Calculator and then pick the matching band here. A 12/12 roof is a 100% grade and 45°, which catches people out — 100% is not vertical.

Gutter Slope and IPC Table 1106.6 Capacity

The NIST formulas describe a level gutter. Hang the same gutter on a fall and it carries more, and the plumbing code quantifies exactly how much: IPC Chapter 11, Storm Drainage tabulates every gutter size at four slopes — 1/16, 1/8, 1/4 and 1/2 inch per foot.

Read across those rows and the pattern is clean. A 3×5 rectangular gutter goes from 157 gpm at 1/4 in per ft to 225 gpm at 1/2 in per ft, a ratio of 1.433. An 8-inch semicircular goes from 172 gpm to 247 gpm over the same doubling, a ratio of 1.436. Both sit on √2. Capacity scales with the square root of slope, and that relationship is read out of the code table rather than assumed.

The calculator uses it in reverse: a gutter at slope s carries √(s ÷ 0.0625) times its level capacity, so sizing for a roof at that slope means sizing a level gutter for the area divided by that factor. Because width goes as a fractional power of area, the saving is smaller than the capacity gain: each doubling of slope takes about 13% off a half-round width and about 12% off a K-style width. Going all the way from level to 1/4 in per foot takes about 22% off a K-style gutter, which is frequently the difference between one stock size and the next.

SMACNA treats anything at or below 1/16 inch per foot as level, and so does this tool. If you leave the slope on the default, the result panel says so and tells you what pitching it would buy — the answer is conservative by construction, never optimistic.

Downspout Sizing, Spacing and the 50-Foot Rule

The downspout recommendation comes from IPC Table 1106.2, which lists how many square feet of roof a circular conductor drains at 1 in/hr. The calculator interpolates between the tabulated diameters, converts rectangular downspouts to their equivalent circular area, divides by your rainfall rate, and picks the first product that covers the area each downspout is carrying.

Three limits then override the arithmetic, and the result panel raises whichever one bites first:

1. No stock gutter is wide enough

   Above 8 in for K-style and 10 in for half-round you are into custom-formed work. The tool says so rather than quietly naming a size that nobody sells. Add downspouts or split the run instead.

2. More than 50 feet between downspouts

   SMACNA calls 50 ft the practical maximum length of gutter one downspout should serve. That limit is thermal expansion, not flow — a longer run needs an expansion joint whatever the hydraulics say.

3. A downspout under 7 square inches

   The common 2×3 rectangular is 6.0 sq in. SMACNA advises against anything under 7 sq in except on porches and canopies, because a small section blocks. A 3×4 is 12 sq in and a 3-inch round is 7.07 sq in.

There is one more rule the calculator states rather than computes: a single downspout on a full elevation leaves no redundancy. If it blocks, the gutter overtops, and the water goes down the wall it was installed to protect. Two is the normal minimum on any run of consequence, which is why the tool defaults to two.

All of this stops at the bottom of the downspout. Below that the same peak flow arrives in a buried pipe, and buried pipe is a tighter constraint than most people expect — a 4-inch corrugated line takes roughly half of what a smooth-wall pipe of the same size and fall would. The French Drain Calculator picks the problem up from there: the stone, the fall, the depth at the outlet, and whether the pipe you bought can carry what the gutter hands it. It works in the same gallons per minute this page reports, so the peak flow above carries straight across.

Common Gutter Sizing Mistakes

1. Measuring up the slope instead of across the ground

   The single most common error, and it inflates a 12/12 roof by 41%. Measure the footprint, then let the pitch factor add the wind allowance.

2. Feeding the whole roof into one gutter

   Each run drains only the plane above it. A gable house is at least two calculations, and a hip roof is four.

3. Using a state or national average rainfall rate

   Intensity varies more within a state than roof area varies between houses. Use the coordinates, not the state.

4. Sizing the gutter and forgetting the outlet

   A correctly sized gutter with an undersized or blocked downspout still overflows. The gutter is a channel; the downspout is the throat.

5. Assuming 6-inch is always the upgrade

   On a typical house the 5-inch gutter runs at under a fifth of capacity. Money spent on a larger gutter is usually better spent on an extra downspout.
